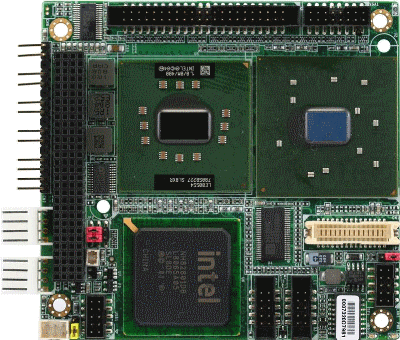

PFM-800P
PCI/104 CPU Module with
Intel Ultra Low Voltage Celeron M
Processor

• Features
• Specifications
• Ordering Information

    Specifications

System


• Form Factor: PC/104
• Processor: Onboard Intel® Ultra Low Voltage Celeron® M 600 MHz/ 1GHz Processor
• System Memory: 200-pin DDR 266 SODIMM x 1, Max. 1GB
• Chipset: Intel® 852GM + Intel® 82801DB (ICH4)
• Ethernet: Intel® 82562ET, 10/100Base-TX
• BIOS: Award 1MB FLASH ROM
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring: Supports power supply voltages and temperature monitoring
• Expansion Interface: PCI-104 Interface
• Battery: Lithium battery
• Power Requirement: +5V, +12V/AT
• Power Consumption (Typical):
  Intel® Celeron® M 1.0GHz, DDR 266 1GB
  +12V @ 0.27A, +5V @ 3.02A
• Board Size: 3.55" (L) x 3.77" (W) (90 mm x 96 mm)
• Gross Weight: 0.33 lb (0.15 kg)
• Operating Temperature: 32ºF~ 140ºF (0ºC ~ 60ºC) for fanless heatsink
• Storage Temperature: -40ºF~176ºF (-40ºC~80ºC)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 100,000

  I/O


• Storage: EIDE x 1 (UDMA 33 for one device), Type I CompactFlash™ x 1
• Serial Port: RS-232 x 1, RS-232/422/485 x 1
• USB: USB2.0 x 2
• PS/2 Port: Keyboard + Mouse x 1

  Display: Supports CRT/ LCD simultaneous display


• Chipset: Intel® 852GM
• Memory: Shared system memory up to 32MB
• Resolutions:
  Up to 1920 x 1080 @ 24bpp colors for CRT
  Up to 1280 x 1024 @ 18bpp colors for LCD
• LCD Interface: 24/48-bit LVDS TFT LCD (Emulated 24/48-bit LVDS)
