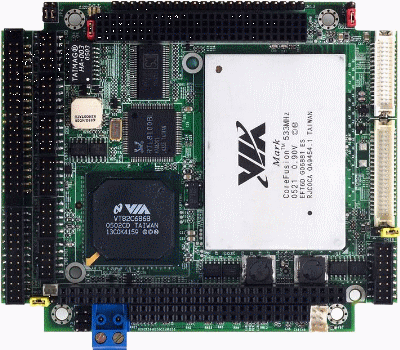

PFM-550S
PC/104+ CPU Module with
Onboard VIA Mark Processor

• Features
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: PC/104
• Processor: Onboard VIA Mark 533MHz Processor
• System Memory: 144-pin SDRAM SODIMM x 1, Max. 512MB (PC-100/133)
• Chipset: VIA Mark + VT82C686B
• Ethernet: Realtek RTL8100BL, 10/100 Base-TX
• BIOS: AWARD 256KB FLASH ROM
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring:
  Supports power supply voltages and temperature monitoring
• Expansion Interface: PC/104+ socket x 1
• Power Requirement: +5V/AT
• Power Consumption (Typical):
  VIA Mark 533MHz, PC-133 512MB = +5V @ 2.31A
• Battery: Lithium battery
• Board Size: 4.53"(L) x 3.78"(W) (115 mm x 96 mm)
• Gross Weight: 0.29 lb (0.13 kg)
• Operating Temperature: 32^oF~ 140^oF (0^oC ~ 60^oC)
• Storage Temperature: -40^oF~176^oF (-40^oC~80^oC)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 100,000

          I/O

• Storage: EIDE x 1 (UDMA 33), Type I CompactFlash x 1, Floppy Disk Drive x 1
• Serial Port: RS-232 x 1, RS-232/485 x 1
• Parallel Port: SPP/ EPP/ ECP mode
• USB: USB1.1 x 4
• PS/2 Port: Keyboard + Mouse x 1
• IrDA: One IrDA Tx/Rx header

          Display: Supports CRT/ LCD simultaneous display

• Chipset: VIA VT8606
• Memory: Shared system memory up to 32MB
• Resolutions:
  Up to 1280x1024 @ 24bpp colors for CRT
  Up to 1024x768 @ 18bpp colors for LCD
• LCD Interface: 18/24-bit TTL, 18/36-bit LVDS TFT LCD
