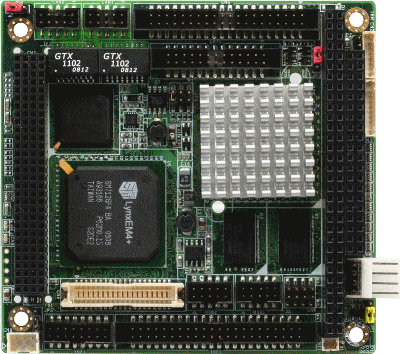

PFM-535S
PC/104 CPU Module with
DM&P Vortex86SX SoC Processor

• Features
• Specifications
• Ordering Information

    Specifications

System


• Form Factor: PC/104
• Processor: Onboard DM&P Vortex86SX SoC (300MHz) Processor
• System Memory: Onboard DDRII Memory – 256MB
• Chipset: DM&P Vortex86SX SoC
• I/O Chipset: DM&P Vortex86SX SoC
• Ethernet: Intel 82551ER, 10/100Base-TX, RJ-45 x 2
• BIOS: AMI - 256KB ROM
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring:
  Supports power supply voltages and temperature monitoring
• Expansion: Interface PC/104+
• Battery: Lithium battery
• Power Requirement: +5V/ AT
• Power Consumption (Typical): Vortex86SX 256MB -- 1.82A @ +5V
• Board Size: 3.55" (L) x 3.77" (W) (90mm x 96mm)
• Gross Weight: 0.33 lb (0.15 Kg)
• Operating Temperature: 32^oF ~ 140^oF (0^oC ~ 60^oC)
• Storage Temperature: -40^oF ~ 176^oF (-40^oC ~ 80^oC)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 129,000

  I/O


• Storage: EIDE x 1 (UDMA-100 for two devices), CompactFlash™ x 1
• Serial Port: RS-232 x 3, RS-232/422/485 x 1
• USB: USB2.0 x 4
• PS/2 Port: Keyboard+Mouse x 1

  Display: Supports CRT/ LCD simultaneous / dual view display


• Chipset: SMI712GF4
• Resolution:
  Up to 1280x 1024 @ 85Hz colors for CRT
  Up to 1024 x 768 @ 24bpp colors for LCD
• LCD Interface: Up to 24-bit TTL
