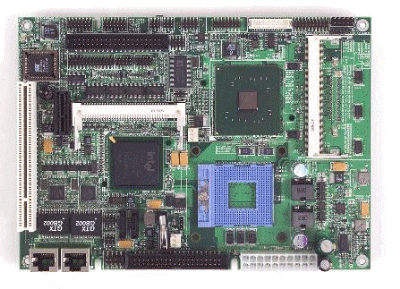

PCM-9150
5.25" Compact Board with
Intel Dothan Pentium M/ Celeron M
Processors

• Features
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: 5.25"
• Processor: Supports Socket 478 Intel Pentium M up to 2.13G with FSB 400/533MHz/ Celeron M up to 1.5G with FSB 400MHz (Dothan)
• System Memory: 200-pin DDRII x 2, Max. 4GB (DDRII 400/533)
• Chipset: Intel 915GM + ICH6-M
• I/O Chipset: ITE8712 + Fintek F81216D
• Ethernet: Marvell 88E8053, 10/100/1000Base-TX, RJ-45 x 2
• BIOS: AWARD Plug & Play BIOS - 512KB ROM
• Wake On LAN: Yes
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring: Supports power supply voltages, fan speed and temperature monitoring functions
• Solid Storage Disk: Type II CompactFlash slot, (USB 2.0 interface) x 1
• Expansion Interface: Mini PCI x 1, PCI x 1, PCI-Express [x1] x 1
• Battery: Lithium battery
• Power Requirement: ATX
• Power Consumption (Typical):
  Intel Pentium M 2GHz, DDRII-533 512MB = 4.13A @ 5V - 1.55A @ 12V
• Board Size: 8"(L) x 5.75"(W) (203mm x 146mm)
• Gross Weight: 1.2 lb (0.5 kg)
• Operating Temperature: 32^oF~ 140^oF (0^oC ~ 60^oC)
• Storage Temperature: -40^oF~ 176^oF (-40^oC ~ 80^oC)
• Operating Humidity: % ~ 90% relative humidity, non-condensing
• MTBF (Hours): 63,554

  I/O



• MIO: EIDE x 1 (UDMA100 x 1), SATA x 2, Keyboard + Mouse x 1,
  RS-232 x 3, RS-232/422/485 x 1, Parallel x 1
• IrDA: One IrDA Tx/Rx header
• Audio: MIC-in/ Line-in/ Line-out/ CD-in, S/P DIF In/Out
• USB: Two 5 x 2 pin headers support 4 USB 2.0 Ports (One for CompactFlash)
  (Does not support Wake-up Function )
• Digital I/O: Supports 8-bit (Programmable)

          Display: Supports CRT/LCD, CRT/TV, CRT/DVI, LCD/DVI, LCD/TV, DVI/TV Dual View/ Simultaneous display under Windows Operating System

• Chipset: Intel 915GM + Chrontel 7307C
• Memory: Shared system memory Up to 128MB with DVMT 3.0
• Resolutions:
  Up to 1600x1200@32bpp colors for CRT
  Up to 1280x1024@24bpp colors for LCD
• LCD Interface: Supports 36-bit dual channel LVDS
• TV-out: Supports NTSC and PAL standard, S-Terminal and Composite Video
• DVI: Yes
