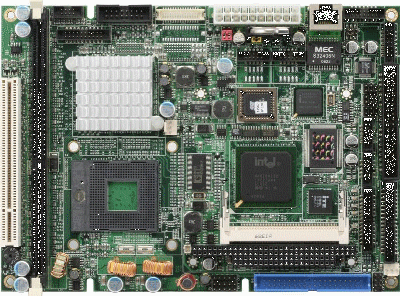

PCM-8152
5.25" Compact Board with
Intel Pentium M / Celeron M
Processors

• Features
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: 5.25"
• Processor: Supports Intel Pentium M/ Celeron M up to 1.8GHz/ Onboard ULV Intel Celeron M processors at 600MHz and 1 GHz, with FSB 400 MHz
• System Memory: 184-pin DDR DIMM x 1, max 1GB (DDR-266/333)
• Chipset: Intel 852GM + ICH4
• I/O Chipset: ITE IT8712
• Ethernet: Intel 82551, 10/100Base-TX, RJ-45 x 1 (Gigabit LAN optional)
• BIOS: AWARD 512KB Flash ROM
• Wake On LAN: Yes (Intel 82551ER does not support)
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring: Supports power supply voltages, fan speed and temperature monitoring
• Solid Storage Disk: Type II CompactFlash slot x 1
• Expansion Interface: Mini PCI x 1, PCI x 1, PC/104 x 1
• Battery: Lithium battery
• Power Requirement: +5V / AT / ATX
• Power Consumption (Typical):
  Intel Pentium M 1.6GHz CPU = 5.39A @ 5V - 0.34A @ 12V
• Board Size: 8" (L) x 5.72" (W) (203mm x 146mm)
• Gross Weight: 1.2 lb (0.5 kg)
• Operating Temperature: 32^oF~ 140^oF (0^oC ~ 60^oC)
• Storage Temperature: -40^oF~176^oF (-40^oC~80^oC)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 57,519

  I/O


• MIO: EIDE x 1 (UDMA-100 x 1), Floppy Disk Drive x 1, Keyboard + Mouse x 1,
  RS-232 x 3, RS-232/422/485 x 1, Parallel x 1
• IrDA: One IrDA Tx/Rx header
• Audio: MIC-in, Line-in, Line-out, CD-IN S/P DIF In/Out, Stereo Amplifier included, 5.1 Channel
• USB: Two 5x2 box headers support 4 USB2.0 ports
• Digital I/O: Supports 16-bit (programmable)

          Display: Supports CRT/LCD, CRT/TV, LCD/TV, CRT/DVI & LCD/DVI simultaneous/ Dual view display

• Chipset: Intel 852GM + Chrontel 7009
• Memory: Shared system memory up to 64MB with DVMT
• Resolutions:
  Up to 1600x1200 @ 32bpp for CRT
  Up to 1280 x 1024 @ 24bpp for LCD
• LCD Interface: Up to 48-bit Dual channel LVDS TFT LCD (24-/48-bit optional)
• TV-out: Supports NTSC and PAL standard, S-Terminal and Composite Video
• DVI: Yes
