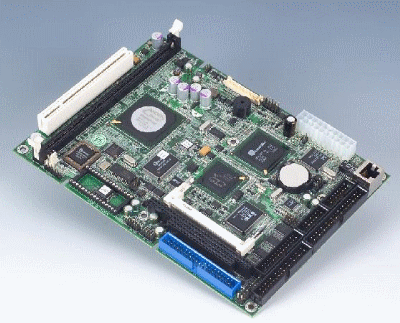

PCM-5893L
5.25" Compact Board with
AMD Geode GX Processors

• Features
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: 5.25"
• Processor: Onboard AMD Geode GX 466/500 (optional)/533 Processor
• System Memory: 184-pin DDR SDRAM DIMM x 1, Max. 512MB (DDR 266MHz)
• Chipset: AMD Geode GX + CS5535
• I/O Chipset: ITE IT8712
• Ethernet: Realtek RTL 8100BL, 10/100 Base-TX, RJ-45 connector x 1
• BIOS: AWARD 256KB FLASH ROM
• Wake On LAN: Yes
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring:
  Supports power supply voltages, fan speed and temperature monitoring
• Solid Storage Disk: Type II CompactFlash slot x 1, DiskOnChip x 1
• Expansion Interface: Mini PCI x 1, PCI x 1, PC/104 x 1
• Battery: Lithium battery
• Power Requirement: 5V/ AT/ATX
• Power Consumption (Typical):
  AMD Geode GX 333MHz & 400MHz, DDR400 256MB
  ATX Power
  For 333MHz: 2.04 A@5V, 0.30 A @12V
  For 400MHz: 3.03 A@5V, 0.17 A@12V
  AT Power
  For 333MHz: 2.33 A@5V, 0.15 A @12V
  For 400MHz: 2.74 A@5V, 0.14 A@12V
• Board Size: 8"(L) x 5.75"(W) (203mm x 146mm)
• Gross Weight: 1.2 lb (0.5kg)
• Operating Temperature: 32^oF~ 140^oF (0^oC ~ 60^oC)
• Storage Temperature: -40^oF~176^oF (-40^oC~80^oC)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 95,342

  I/O


• MIO:
  EIDE x 1 (UDMA66x 1), Floppy Disk Driver x 1, Keyboard+Mouse x 1,
  RS-232 x 3, RS-232/422/485 x 1, Parallel x 1
• IrDA: One IrDA Tx/Rx header
• Audio: MIC-in, Line-in, Line-out, CD-in
• USB:
  Two 5 x 2 pin headers support 4 USB1.1 ports (Does not support Wake-up function)
• Digital I/O: Supports 8-bit (Programmable)
• CAN Bus: Supports one port

  Display


• Chipset: AMD Geode GX
• Memory: Shared system memory up to 16 MB
• Resolutions:
  Up to 1280x1024@24bpp colors for CRT
  Up to 1024x768@24bpp colors for LCD
