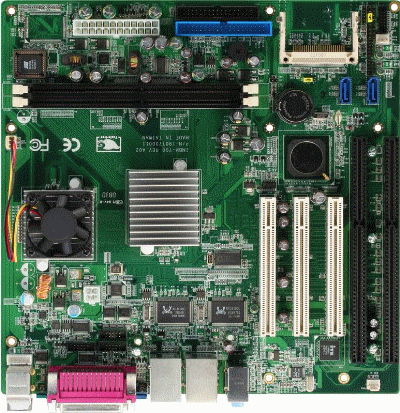

IMBM-700
Micro-ATX Industrial Motherboard
With VIA C7/ Eden Processor

• Features
• Introduction
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: uATX Motherboard
• Processor:
  VIA C7™/Eden™ CPU, up to 2.0 GHz (FSB400/800 MHz)
  Onboard C7 1.0 GHz (FSB 400 MHz)
• System Memory: 240-pin 1.8v DDR II 400/533 DIMM Socket x2, up to 2 GB
• Chipset: VIA CN700 + VT8237R+
• Ethernet: PCI 10/100 & 10/100/1000Base-TX (optional), RJ-45 x 2
  LAN1: Realtek 8100C
  LAN2: Realtek 8110SC/8100C Co-layout
• BIOS: Award Plug & Play Flash BIOS – 512 Kb ROM
• H/W Status: Monitoring CPU Fan, temperature, PSU Voltage
• Expansion Interface: PCI x 3, ISA x 2
• Watchdog Timer: 1~255 step, can be set with software on Super I/O
• RTC: Internal RTC
• Battery: Lithium Battery
• Power Requirement: ATX 2.1
• Power Consumption: 15W, VIA C7™ 1.0 GHz CPU
• Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
• Board Size: 9.6" (L) x 9.6" (W) (244mm x 244mm)
• Gross Weight: 0.66lb (0.3 Kg)
• MTBF: —

  I/O: Winbond 83627


• Storage:
  SATA I (RAID optional) x 2, IDE x 1
  CompactFlash™ Type II x 1
  Standard FDD x 1, supports floppy device x 1
• Serial Port:
  COM x 4: (Internal Pin Header x 3, External D-sub x 1)
  COM 1, 3, 4: RS-232
  COM 2: RS-232/422/485
• Parallel Port: Supports SPP/EPP/ ECP modes
• Universal Serial Bus:
  USB2.0 x 8
  5x2 pin header for internal x 4
  TYPE-A Connector onboard x 4
• PS/2 Port: Keyboard x 1, Mouse x 1
• Digital I/O: 4 in and 4 out
• Audio: Realtek AC97 Codec, MIC-in/Line-in/Speaker-out
• IrDA: IrDA Tx/Rx header x 1

          Display: VIA CN700

• VGA Controller: Enhanced Integrated Graphics
• Memory: Shared memory up to 64 MB
• Resolutions: 1920x1440x24bpp at 60 MHz for CRT
• LCD Interface
