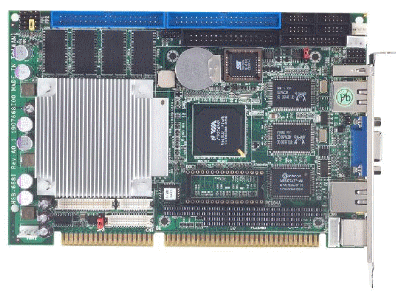

VIA Mark CoreFusion 533MHz ISA Half-size Single Board Computer, Modelo HSB-668I

Half-size CPU Cards Micro Industriais
	HSB-668I
Features Introduction Specifications Ordering Information	VIA Mark 533MHz ISA Half-size SBC
Features Onboard VIA CoreFusion 533MHz Processor, 128MB SDRAM One SODIMM SDRAM, Memory Up To 512MB Integrated ProSavage4 Graphic, 2D/3D VGA Support 2 Channel 36-bit LVDS LCD Support 10/100Mb Base-TX Ethernet x 2 (10/100 & GbE x 1 Optional) Integrated AC97 Codec Audio (Daughter Board Optional) USB 1.1 x 3/ RS-232 x 3, RS-232/422/485 x 1/ Parallel x 1/ IrDA Port x 1 DOC2000 PC-104 Interface Socket Ultra ATA100 Channel x 2 Watchdog Function 1 ~ 255 Sec. ISA High-driver Support
Introduction
Specifications System Form Factor: ISA Half-size SBC Processor: Onboard VIA Mark CoreFusion 533MHz CPU System Memory: 144-pin 3.3V SODIMM Socket x 1, up to 512MB onboard 128MB memory, supports PC 133 types Chipset: Mark + VT82C686B Ethernet: 10/100Mb or 10/100/1000Mb LAN optional, RJ-45 x 2, Realtek 8100C/8110S controller BIOS: Award Plug & Play ISA BIOS – 2Mb ROM IDE Interface: ATA-100 (Support four ATAPI devices) x 2 SSD: DOC 2000 support Expansion Interface: ISA interface/ PC-104 Watchdog Timer: 1~255 Sec. can be set with software RTC: Internal RTC Battery: Lithium battery Power Requirement: +5V only, Mini 4pin power connector Operating Temperature: 32ºF ~ 140ºF (0ºC ~ 60ºC) Board Size: 7.3" (L) x 4.8" (W) (185 mm x 122 mm) Gross Weight: 0.7 lb (0.3 kg) MTBF (Hours): 82,470 Power Consumption (Typical): 14W, Onboard VIA Mark 533 MHz I/O Chipset: VT686B + Winbond 83977ATF Serial Port: COM port x 4: (Internal Pin Header, External D-sub x 2), COM 1, 3, 4: RS-232, COM 2: RS-232/422/485 (Pin 9 support +5V by Jumper) Parallel Port: Parallel Port supports SPP/ EPP/ ECP mode x 1 Universal Serial Bus: USB 1.1 port x 3, 5 x 2 pin header x 1, Type A connector x 1 Floppy Drive Interface: Standard Floppy Disk Drive x 1 Keyboard and Mouse: Mini-DIN PS/2 K/B and Mouse connector x 1, Internal keyboard pin header x 1 IR Interface: Supports IrDA and CIR header x 1 Audio (Daughter Board): AC97 Codec, MIC-in/ Line-in/ Line-out/ CD-in Display: Supports CRT & LCD simultaneous display VGA Controller: Integrated on Mark Memory: 32MB frame buffer share system Resolutions: Up to 1600x1200 @ 32bpp colors for CRT, Up to 1280x1024 @ 24bpp colors for LCD LCD Interface: Up to 36-bit LVDS/ TTL LCD support
Ordering Information TF-HSB-668I-A10-VE Half-size ISA SBC, VIA Mark 533M CPU, 128MB SDRAM, VGA, 1 LAN, 3 USB, LVDS, DOC2000, AC97, Rev. A1.0 TF-HSB-668I-A10-VG Half-size ISA SBC, VIA Mark 533M CPU, 128MB SDRAM, VGA, Gbe LAN, 3 USB, DOC2000, AC97, Rev. A1.0 TF-HSB-668I-A10-E2 Half-size ISA SBC, VIA Mark 533M CPU, 128MB SDRAM, VGA, 2 LANs, 3 USB, LVDS, DOC3200, Rev. A1.0 TF-HSB-668I-A10-EG Half-size ISA SBC, VIA Mark 533M CPU, 128MB SDRAM, VGA, 1 10/100 LAN, 1 Gbe LAN, 3 USB, LVDS, DOC2000, Rev. A1.0 TF-HSB-668I-A10-V Half-size ISA SBC, VIA Mark 533M CPU, 128MB SDRAM, VGA, 3 USB, LVDS, DOC2000, Rev. A1.0
