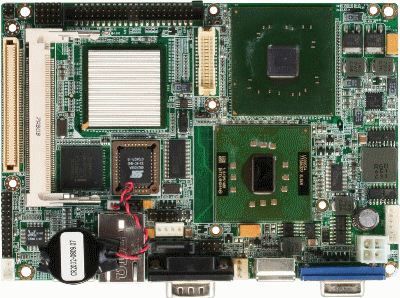

GENE-9155
3.5" SubCompact Board with
 Intel Pentium M/ Celeron M
Processors


    Features
  • Intel® Pentium® M/ Celeron® M Processors Up To 2.0 GHz
  • Intel® 915GME + ICH6M
  • SODIMM DDRII 400/533 Max. 2 GB
  • 10/100/1000Base-TX Ethernet x 1
  • CRT & 18-bit Dual-channel LVDS LCD
  • AC97 2.3 Codec 2CH Audio
  • EIDE x 1, SATA I x 1 & CompactFlash™ Slot x 1
  • 8-bit Digital I/O, USB x 4, COM x 2
  • Flexible Expansion: Mini-PCI Socket And ECX Proprietary Expansion
  • 12V Only Operation
    Specifications
    System

  • Form Factor: 3.5"
  • Processor:
    Socket -478M Intel® Pentium® M up to 2.0 GHz with FSB: 400/533 MHz/
    Celeron® M up to 1.5 GHz with FSB 400 MHz
  • System Memory: 200 pin DDRII 400/533 SODIMM x 1, Max. 2 GB
  • Chipset: Intel® 915GME+ICH6M
  • I/O Chipset: ITE IT8712
  • Ethernet: Intel® 82573L, 10/100/1000Base-TX RJ-45 x 1
  • BIOS: Award Plug & Play BIOS - 1 MB ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring: Supports power supply voltages, Fan speed and temperature monitoring
  • Expansion Interface: Mini-PCI & ECX Proprietary Expansion
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX
  • Power Consumption (Typical):
    Pentium® M 1.8 GHz DDRII 533 1 GB
    3.29A@ +12V
  • Board Size: 5.75" (L) x 4" (W) (146mm x 101.6mm)
  • Gross Weight: 0.88 lb (0.4KG)
  • Operating Temperature: 32oF ~ 140oF (0oC ~ 60oC)
  • Storage Temperature: -40oF ~ 176oF (-40oC ~ 80oC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 70,000

    I/O

  • Storage: EIDE x 1 (UDMA 33 for two devices), SATA I x 1, Type II CompactFlash™ x 1
  • Serial Port: RS-232 x 1, RS-232/422/485 (auto flow) x 1
  • USB: USB2.0 x 4
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Mic-in, Line-in, Line-out, CD-in, S/PDIF in/out

    Display:     Supports CRT/ LCD, simultaneous and dual view display

  • Chipset: Intel® 915GME integrated
  • Memory: Shared system memory up to 224 MB w/DVMT 3.0
  • Resolutions:
    Up to 2048 x 1536 for CRT
    Up to 1024 x 768 for LCD
  • LCD Interface: 18-bit dual-channel LVDS
  Ordering Information
  • TF-GENE-9155-A10
    3.5" Board, Socket-478M, LCD, DDRII, Gigabit Ethernet, Audio, 2COM, USB2.0, CompactFlash™, Mini-PCI, ECX Expansion, Rev. A1.0

Optional Accessories

  • TF-PER-T061-A10 -- ECX Expansion Board, LVDS, 2SATA, 4COM,1USB, Rev. A1.0
  • TF-PER-T061-A10-01 -- ECX Expansion Board, DVI, 2SATA, 4COM, 1USB,Rev. A1.0
  • TF-PER-T099-A10 -- ECX Extension Board, LVDS, PCI-Express, 2COM, Rev. A1.0
  • TF-PER-T099-A10-01 -- ECX Extension Board, LVDS, Mini Card, 2COM, Rev. A1.0
  • TF-PER-T099-A10-02 -- ECX Extension Board, DVI, PCI-Express, 2COM, Rev. A1.0
  • TF-PER-T099-A10-03 -- ECX Extension Board, DVI, Mini Card, 2COM, Rev. A1.0
  • 1709100208 -- USB Cable, Length 20cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1702151200 -- SATA Power Cable, Length 12cm
  • 1709140181 -- Audio Cable, Length 18cm
  • 1709030150 -- SPDIF Cable, Length 15cm
  • 1701100206 -- COM Port Cable, Length 20cm
