Single Board Computer, Embedded System, CPU Intel ULV Celeron M, Modelo GENE-8315

SBC - Tamanho Sub-Compacto

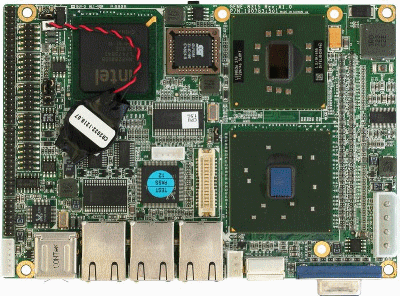

	GENE-8315 3.5" SubCompact Board with Onboard Intel (ULV) Celeron M Processors
Features Introduction Specifications Ordering Information
Features Onboard Intel ULV Celeron M 600MHz/ 1.0GHz ZC or Celeron M 1.3GHz/ 1.5GHz Processor DDR266 SODIMM, Max. 1GB CRT & LVDS Multiple Displays Up to 24-bit Dual-Channel LVDS TFT LCD Three 10/100Base-TX Ethernet AC97 2.0 Codec 2 CH Audio IDE & Type II CompactFlash Slot COM x 2/ USB2.0 x 4/ 2CH AC97 2.0 Codec +5V Only Operation
Introduction The GENE-8315 is based on Intel ULV Celeron M 600MHz/ 1.0GHz ZC or Celeron M 1.3GHz/ 1.5GHz processor and 200-pin DDR SODIMM up to 1GB system memory. It is designed to provide the ideal combination of low power, excellent performance, and small size for applications that require a small from factor like AAEON SubCompact Board –GENE-8315. The most significant feature of GENE-8315 is the LAN port deployment. It accommodates three 10/100Base-TX RJ-45 connectors that allow more and faster network connections. GENE-8315 equips one Intel EP82562ET Ethernet controller and two Realtek RTL8100BL-LF Ethernet controllers for multi-task data transmission in the network. It also provides a basic display mode that is CRT & LVDS multi-displays and has fulfilled market demands to achieve the target of cost efficiency. For a wide expansion capability, GENE-8315 equips flexible I/O interfaces—2 COM, 4 USB2.0, Parallel port, Digital I/O, Keyboard/Mouse interfaces, etc. In addition, one PATA-33 IDE and one type II CompactFlash slots to enlarge the storage of GENE-8315. The GENE-8315 combines superb performance and controllable power usage. It is the best solution for supporting diverse applications.
Specifications System Form Factor: 3.5" Processor Onboard Intel Celeron M Processors 1.5GHz/1.3GHz or Intel ULV Celeron M Processors 1.0GHz 0K L2 cache/ 600MHz 512K L2 cache with FSB: 400MHz System Memory: 200-pin DDR SODIMM x1, Max. 1GB (DDR266) Chipset: Intel 852GM + ICH4 I/O Chipset: ITE IT8712 Ethernet: Intel 82562 x 1 & Realtek RTL8100BL x 2 for 10/100 Bast-TX, RJ-45 connector x 3 BIOS: Award Plug & Play LPC BIOS - 1MB ROM Wake On LAN: Yes Watchdog Timer: Generates a time-out system reset H/W Status Monitoring: Supports power supply voltages, fan speed, and temperature monitoring Battery: Lithium battery Power Consumption (Typical): Celeron M 1.5GHz, DDR 1GB = 5.21A@5V Board Size: 5.75" (L) x 4" (W) (146mm x 101.6mm) Gross Weight: 0.8 lb (0.4 Kg) Operating Temperature: 32^oF~ 140^oF (0^oC ~ 60^oC) Storage Temperature: -40^oF~176^oF (-40^oC~80^oC) Operating Humidity: 0% ~ 90% relative humidity, non-condensing I/O Storage: EIDEx1 (UDMA-33), CompactFlash x 1 Serial Port: RS-232 x 1, RS-232/422/485 x 1 Parallel Port: SPP/ EPP/ ECP mode USB: USB2.0 x 4 PS/2 Port: Keyboard + Mouse x 1 Digital I/O: Supports 8-bit (Programmable) Audio: Mic-in, Line-in, Line-out, CD-in Display: Supports CRT/LCD simultaneous/ dual view display Chipset: Intel 852GM integrated VGA Memory: Shared system memory up to 64MB with DVMT Resolutions: Up to 1600 x 1200 @ 32bpp colors for CRT Up to 1280 x 1024 @ 24bpp colors for LCD LCD Interface: Up to 24-bit dual-channel LVDS (Emulated 24-bit Dual channel LCD)
Ordering Information TF-GENE-8315-A10 3.5" Board, UV Celeron M 600MHz, Fanless, LCD, DDR, 3 LAN, 2 COM,USB2.0, CompactFlash, AT/ATX, Rev. A1.0 TF-GENE-8315-A10-01 3.5" Board, UV Celeron M 1GHz ZC, Fanless, LCD, DDR, 3 LAN, 2 COM,USB2.0, CompactFlash, AT/ATX, Rev.A1.0 TF-GENE-8315-A10-02 3.5" Board, Celeron M 1.5GHz, LCD, DDR, 3 LAN, 2 COM,USB2.0, CompactFlash, AT/ATX, Rev.A1.0 Optional Accessories 1702200205 (TF) Power Cable, 20P ATX(M), 4P 5.08mm Housing(F), +6P 2.0mm Housing, 20cm 1709100201 (TF) USB Cable, 20cm 2.0mm, W/Bracket 1701100207 (TF) Flat Cable, 9P DB-SUB Male, 10P 2.00mm Pitch Housing, 20cm 1701260201 (TF) Flat Cable, 25P D-SUB Female, 26P 2.00mm Pitch Housing, 20cm 1700140510 (TF) CABLE, 4P/2.54 HOUSING RCA JACK x 3, 14P/2.0 HOUSING, 51cm, for AUDIO I/O
