GENE-9315

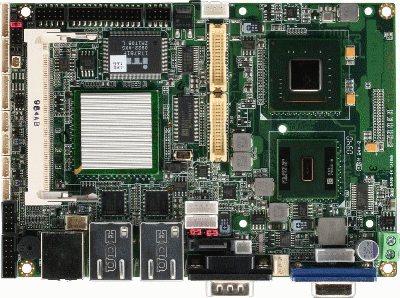

3.5" SubCompact Board with Onboard Intel Atom N270 Processor

• Features
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: 3.5"
• Processor: Onboard Intel® Atom™ N270 Processor 1.6 GHz , FSB 533 MHz
• System Memory: 200 pin DDRII SODIMM x 1, Max. 2 GB (DDRII 400/533)
• Chipset: Intel® 945GSE + ICH7M
• I/O Chipset: ITE8781
• Ethernet: Intel® 82574L, 10/100/1000Base-TX, RJ-45 x 2
• BIOS: Award Plug & Play SPI BIOS - 2 MB Flash
• Wake on LAN: Yes
• Watchdog Timer: Generate a time-out system reset
• H/W Status Monitoring: Supports power supply voltages and temperature monitoring
• Expansion Interface: Mini-PCI x 1, Mini Card x 1
• Trusted Platform Module(TPM): Infineon SLB 9635 TT 1.2 (Optional)
• Battery: Lithium battery
• Power Requirement: +12V, AT/ATX
• Power Consumption (Typical)
  Intel® Atom™ N270, DDRII 667 2 GB
  1.55A@ +12V
• Board Size: 5.75"(L) x 4"(W) (146mm x 101.6mm)
• Gross Weight: 0.88lb (0.4kg)
• Operating Temperature: 32^oF ~ 140^oF (0^oC ~ 60^oC)
• Storage Temperature: -40^oF ~ 176^oF (-40^oC ~ 80^oC)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 70,000

  I/O


• Storage: SATA I x 1, Type II CompactFlash™ x 1
• Serial Port: RS-232 x 3, RS-232/422/485(auto flow) x 1
• Parallel Port: SPP/EPP/ECP x 1
• Universal Serial Bus: USB 2.0 x 6
• PS/2 Port: Keyboard x 1, Mouse x 1
• Digtial I/O: Supports 8-bit (Programmable)
• Audio: Mic-in, Line-in, Line-out, CD-in

          Display: Supports CRT/LCD, CRT/TV, LCD/TV, simultaneous/ Dual view displays

• Chipset: Intel® 945GSE integrated
• Memory: Shared system memory up to 224 MB/DVMT 3.0
• Resolutions: Up to 1920 x 1440 for CRT / Up to 1920x 1200 for LCD
• LCD Interface:
  Dual LVDS LCDs: 18-bit Dual-Channel LVDS LCD + 24-bit Dual-Channel
  LVDS LCD
• TV-out: Supports NTSC & PAL Standards S-Terminal and Composite Video
