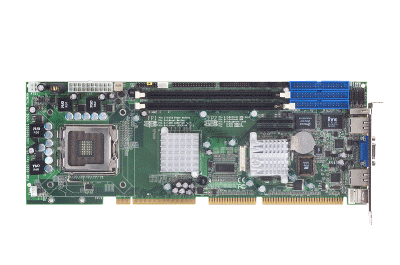

Intel Pentium 4/Celeron D LGA775 PICMG Full-size Single Board Computer, Modelo FSB-866G

Full-size CPU Cards Micro Industriais
	FSB-866G
Features Introduction Specifications Ordering Information	Intel Pentium 4 LGA775 PICMG Full-size SBC
Features Intel Pentium 4/ Celeron D CPUs up to 3.8GHz DDR 333/400 Memory Support Up To 2GB Integrated GMA900 2D/3D Graphics Accelerator, VGA Support PCI-Express Connector x 2, Support Full-speed Gigabit LAN x 2 USB2.0 x 7/ RS-232 x 1, RS-232/422/485 x 1/ Parallel x 1/ IrDA Port x 1 Ultra ATA100 & SATA & CompactFlash Type-II Storage IDE Slot x 1 Supports IDE Device x 2 ITE8211 Supports 3 IDE Devices (Optional)
Introduction
Specifications System Form Factor: PICMG Full-size SBC Processor: Supports Intel LGA 755 Pentium 4 and Celeron-D Processors up to 3.8GHz (533/800MHz FSB) , only support 90 nm processor System Memory: 184-pin 2.5V DDR DIMM Socket x 2, total up to 2GB Support Dual Channel DDR memory (DDR 333/400) Chipset: Intel 915GV + Intel 82801FB (ICH6/ ICH6R optional) Ethernet: PCI-Express 10/100Mb or 10/100/1000Mb LAN RJ-45 connector Marvell 88E8036/88E8053 controller BIOS: Award Plug & Play FWH BIOS-4Mb ROM IDE Interface: ATA-100 x 1 channel (Support two ATAPI devices), SATA-I x 4 (Support four SATA devices) SSD: Supports CompactFlash Type II connector, USB to IDE ISA Interface: PCI to ISA Bridge Used Expansion Interface: ISA/ PCI/ PCI-Express Connector Watchdog Timer: 1~255 Sec. and can be set with software on Super I/O RTC: Internal RTC Battery: Lithium battery Power Requirement: ATX, ATX12V Operating Temperature: 32^oF ~ 140^oF (0^oC ~ 60^oC ) Board Size: 13.3"(L) x 4.8"(W) (338mm x 122mm) Gross Weight: 1.2 lb (0.5 kg) MTBF (Hours): 68,914 Power Consumption (Typical): 112W, with Pentium 4 3.2GHz/ FSB 800MHz/ 1MB L2 Cache I/O: Chip /W83627EHG Serial Port: COM port x 2: (Internal pin header, external D-sub x 2), COM 1: RS-232, COM 2: RS-232/422/485 Parallel Port: Parallel Port x 1, Supports SPP/EPP/ECP mode Universal Serial Bus: USB 2.0 Port x 7; 5 x 2 pin headers for internal x 3; Type-A connector onboard x 1 Floppy Drive Interface: Standard Floppy Disk Drive port x 1 Keyboard and Mouse: Mini-DIN for PS/2 Keyboard and mouse connector x 1; Internal keyboard pin header x 1 IR Interface: Supports IrDA header x 1 Audio (Daughter Board): Realtek ALC655 AC97 Codec, MIC-in/ Line-in/ Line-out/ CD-in optional Display: Supports CRT & LCD simultaneous display VGA Controller: Integrated GMA 900 on Intel 915GV, Core frequency up to 333MHz Memory: Shared Memory up to 128MB Resolutions: Up to 2048 x 1536 @ 32bpp for CRT LCD Interface: N/A
Ordering Information TF-FSB-866G-A11-V Full-size PICMG CPU Card, Socket 775 Pentium 4, VGA, Rev. A1.1 TF-FSB-866G-A11-VE Full-size PICMG CPU Card, Socket 775 Pentium 4, VGA, 10/100M Ethernet, Rev. A1.1 TF-FSB-866G-A11-VG Full-size PICMG CPU Card, Socket 775 Pentium 4, VGA, Gigabit Ethernet, Rev. A1.1 TF-FSB-866G-A11-EG Full-size PICMG CPU Card, Socket 775 Pentium 4, VGA, 1 x 10/100M & 1 x 10/100/1000M Ethernet, Rev. A1.1 TF-FSB-866G-A11-E2 Full-size PICMG CPU Card, Socket 775 Pentium 4, VGA, 2 x 10/100M Ethernet, Rev. A1.1 TF-FSB-866G-A11-G2 Full-size PICMG CPU Card, Socket 775 Pentium 4, VGA, 2 x Gigabit Ethernet, Rev. A1.1 Optional Accessories: TF-PER-C101 Dual PCI-E Giga LANs Card w/Broadcom BCM 5789/5751/5721 TF-PER-C102 Dual PCI-E 10/100/1000 LANs Card w/Marvell 88B8036/53 TF-PER-U00A 5.1 Channel Audio 4 USB Connectors 1703030501 ATX Power from Backplane to CPU Card 1702030301 ATX Power Simulation AT Power Switch Wire 1701400800 P-ATA100 Cable 80cm 1709070780 SATA Cable 78cm 1702043000 ATX 12V Extension Cable 1701260307 1 Serial port + 1 Parallel port with Bracket 1701100305 1 Serial port with Bracket 1998666611 P-ATA IDE removable frame-Black 1998666612 P-ATA IDE removable frame-White 1998666613 SATA IDE removable frame-Black 1998666614 SATA IDE removable frame-White 1759200162 CPU Cooler Fan for LGA775 Pentium 4, 3.8GHz, 3P 12V, Dual Ball Bearing, 2 U.
