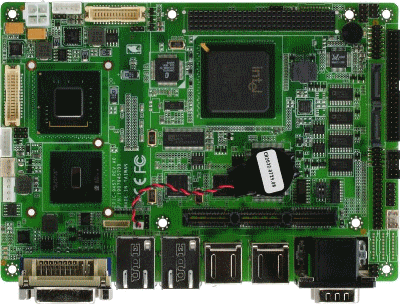

EPIC-9457
EPIC Board with
Onboard Intel Atom N270
Processor

• Features
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: EPIC
• Processor: Onboard Intel® Atom™ N270 Processor 1.6GHz, FSB: 533/667MHz
• System Memory: 200-pin DDRII SODIMM x1, Max. 2GB (DDRII 400/533)
• Chipset: Intel® 945GSE + ICH7M
• I/O Chipset: ITE8781
• Ethernet: Intel® 82574L for 10/100/1000Base-TX, RJ-45 x 2
• BIOS: Award Plug & Play SPI BIOS - 2MB ROM
• Wake On LAN: Yes
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring:
  Supports power supply voltages and temperature monitoring
• Expansion Interface:
  PCI/104 Express Expansion (PCI-104 + PCI Express) connectors
• Battery: Lithium battery
• Power Requirement: +8.5V ~ 19V
• Power Consumption (Typical):
  Intel® Atom™ N270 1.6 GHz, DDRII 2 GB
  1.6A @ 12V
• Board Size: 4.5" x 6.5" (115mm x 165mm)
• Gross Weight: 1.1 lb (0.5KG)
• Operation Temperature: 32^oF ~ 140^oF (0^oC ~ 60^oC)
• Storage Temperature: -40^oF ~ 176^oF (-40^oC ~ 80^oC)
• Operation Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 60,000

  I/O


• Storage: EIDEx1 (UDMA-100 for two devices), SATA x 2, CompactFlash™ x 1
• Serial Port: RS-232 x 3, RS-232/422/485 x 1
• Parallel Port: SPP/EPP/ECP Mode
• USB: USB2.0 x 6
• PS/2 Port: Keyboard+Mouse x 1
• Digital I/O: Supports 8-bit (programmable)
• Audio: Line-in, Line-out, Mic-in & CD-in
• Touch Screen: Optional

          Display:
          Supports CRT / LCD simultaneous / Dual view displays

• Chipset: Intel® 945GSE integrated
• Memory: Shared system memory up to 224MB with DVMT3.0
• Resolutions:
  Up to 2048x1536 @ 32bpp colors for CRT,
  Up to 1600x1200 @ 24bpp colors for LCD
• LCD Interface: 24-bit dual-channel LVDS
• TV-out: Supports NTSC & PAL Standard S-terminal and Composite video
• DVI: DVI-I x 1
