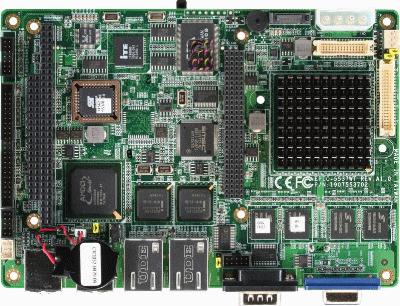

EPIC-5537
EPIC Board with Onboard
AMD Geode LX 800 Processors

• Features
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: EPIC
• Processor: Onboard AMD Geode™ LX 800 (500 MHz) Processors
• System Memory: Onboard DDR333 Memory - 256 MB (optional 512 MB)
• Chipset: AMD LX series + CS5536
• I/O Chipset: SMSC SCH3112
• Ethernet: Intel® 82551ER, 10/100Base-TX, RJ-45 x 2
• BIOS: Award Plug & Play BIOS - 1 MB ROM
• Wake On LAN: None
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring
  Supports power supply voltages and temperature monitoring
• Expansion Interface: PC/104+ (PCI-104 + PC/104)
• Battery: Lithium battery
• Power Requirement: 5V Only, AT
• Power Consumption (Typical): +5V @ 1.95A
• Board Size: 4.53" (L) x 6.5" (W) (115mm x 165mm)
• Gross Weight: 1.2 lb (0.5 kg)
• Operation Temperature: 32^oF ~ 140^oF (0^oC ~ 60^oC),
  Optional: -4^oF ~ 158^oF (-20^oC ~ 70^oC)
• Storage Temperature: -4^oF ~ 176^oF (-4^oC ~ 8^oC)
• Operation Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 70,000

  I/O


• Storage: SATA I x 1, EIDE x 1 (UDMA-100 for two devices), CompactFlash™ x 1
• Serial Port: RS-232 x 2
• USB: USB2.0 x 4
• PS/2 Port: Keyboard+Mouse x 1
• Digital I/O: Supports 8-bit (programmable)
• Audio: Line-in, Line-out, Mic-in & CD-in

          Display: Supports CRT/LCD simultaneous display/ dual view display

• Chipset: AMD LX 800 + TI SN75LVDS83
• Memory: Shared system memory up to 254 MB
• Resolutions:
  Up to 1920 x 1440 @ 24bpp colors for CRT
  Up to 1600 x 1200 @ 24bpp colors for LCD
• LCD Interface:
  Up to 24-bit single-channel LVDS/TTL LCD(Configured by Manufacturer)
• LCD Inverter: Yes, +5V or +12V
