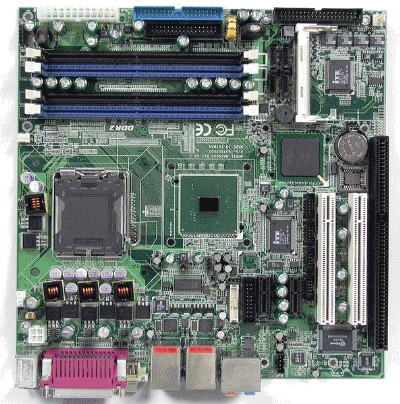

	EMB-900 Micro-ATX Embedded Motherboard with Intel LGA775 Processors *Pentium 4/ Celeron D*
Features Introduction Specifications Ordering Information
Features Intel Pentium 4/ Celeron D (LGA775) Processors up to 3.4GHz DDR II 400/533 DIMM x 4 up to 4GB, Support Dual-channel Memory Capability CRT and DVI Display, Up to 24-bit Dual-channel LVDS Gigabit Ethernet x 1 8-channel High Definition Audio Type II CompactFlash PCI-E [x1] x 2/ PCI x 2/ Mini PCI x 1/ Legacy ISA x 1 COM x 4/ USB2.0 x 8
Introduction The EMB-900M is AAEON's first board that supports Intel 915GV Express chipset. This is important breakthroughs for AAEON in the industrial environment domain. High-Quality and Extreme Performance With the flexibility to support the Intel Pentium 4 processor 550 with HT Technology and Intel Celeron D processor 340, the EMB-900M can offer a scalable solution across different processing speeds. The EMB-900M also provides an improved performance over previous solutions by incorporating the Intel 915GV Express chipset. The DDR2 and PCI Express interface are the newest technologies that allow the EMB-900M to provide very high-speed bus bandwidth. By using PCI Express interface and adding 192KHz/7.1 Channel HD Audio, the EMB-900M can bring a significant increase in audio and visual performance in various applications. The extended life motherboards that AAEON supplies to the industrial markets offer functionality not available in off-the-shelf consumer motherboards, such as High-Bandwidth Gigabit Ethernet Connectivity, 4 COM Ports and optional ISA expansion slot. Multimedia Function The EMB-900M can be broadly implemented in various applications. It is suitable for High-end POS/ KIOSK by taking advantage of the Intel Graphics Media Accelerator 900 (IntelO GMA 900). It is also suitable for Gigabit firewall and security applications thanks to its Gigabit-Ethernet Controller that utilizes a PCI-Express interface. The applicability extends to Gaming and Entertainment Markets as well because of the 192K/24bit 7.1 Channel HD Audio via Intel I/O Controller Hub 6.
Specifications System Form Factor: Micro-ATX Processor: Supports Pentium 4/ Celeron D LGA775 processor up to 3.4GHz with FSB 400/533 MHz System Memory: 240-pin DDR II DIMM x 4, Max. 4GB (DDR II 400/533), support Dual-channel memory capability Chipset: Intel 915GV+ICH6 I/O Chipset: ITE 8712 Ethernet: Marvell 88E8053, Gigabit EthernetRJ-45 x 2 BIOS: AWARD 512KB FLASH ROM Wake On LAN: Yes Watchdog Timer: Generates a time-out system reset H/W Status Monitoring: Supports power supply voltages and temperature monitoring Expansion Interface: Mini PCI x 1, PCI x 2, PCI-Express [x1] x 2, ISA x 1 Battery: Lithium battery Power Requirement: ATX, ATX12V Power Consumption (Typical): Pentium 4 3.2GHz, DDRII 533 1GB +12V @ 6.12A, +5V @ 2.86A Board Size: 9.6"(L) x 9.6"(W) (244mm x 244mm) Gross Weight: 1.32 lb (0.6 kg) Operating Temperature: 32^oF ~ 140^oF (0^oC ~ 60^oC) Storage Temperature: -40^oF ~ 176^oF (-40^oC ~ 80^oC) Operating Humidity: 0% ~ 90% relative humidity, non-condensing MTBF (Hours): 50,000 I/O Storage: EIDE x 1 (UDMA 100), SATA I x 3, Type II CompactFlash? x 1, Floppy Disk Drive x 1 Serial Port: RS-232 x 3, RS-232/422/485 x 1 Parallel Port: SPP/ EPP/ ECP mode USB: USB2.0 x 8 PS/2 Port: Keyboard x 1, Mouse x 1 Digital I/O: Supports 16-bit (Programmable) IrDA: One IrDA Tx/Rx header Audio: 8-channel High Definition Audio Display: Supports CRT, DVI, LVDS, LCD Chipset: Intel 915GV Memory: Shared memory up to 224MB with DVMT Resolutions: Up to 1024x768@24bpp colors for LCD LCD Interface: Up to 24-bit dual-channel LVDS
Ordering Information TF-EMB-900M-A10 Micro ATX, LGA-775, DVI, DDRII, 2GbE, HD Audio, 4 COM, USB 2.0, CompactFlash, PCI-E, ATX, Rev.A1.0 Optional Accessories TF-PER-C10L-A10 - Mini PCI 10/100 Base-TX Ethernet Module with Realtek 8100C TF-PER-C10L-A10-01 - Mini PCI Gigabit EthernetEthernet Module with Realtek 8110S TF-PER-C10L-A10-02 - Mini PCI 10/100 Base-TX Ethernet Module with Intel 82551QM TF-PER-C10L-A10-03 - Mini PCI Gigabit EthernetEthernet Module with Intel 82541GI TF-PER-C20S-A10 - Mini PCI 2-port SATA Module Rev.A1.0 TF-PER-C30F-A10 - Mini PCI 3-port IEEE 1394a Module TF-PER-V30C-A11 - Mini PCI Single Channel Capture Module with Philips SAA7135 TF-PER-C40C-A10 - Mini PCI 2-port RS-232 Module Rev. A1.0 TF-PER-C40C-A10-01 - Mini PCI 4-port RS-232 Module Rev. A1.0
