Single Board Computer, Mini-ITX, Embedded System, CPU Intel Pentium 4 / Celeron, Modelo EMB-830

Embedded Motherboards

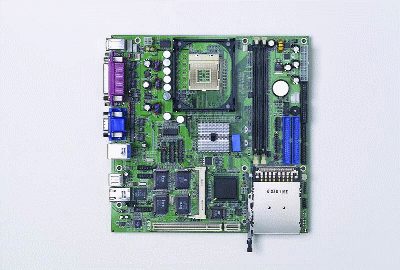

	EMB-830 Micro-ATX Embedded Motherboard with Intel *Processors* *Pentium 4 / Celeron*
Features Introduction Specifications Ordering Information
Features Socket 478-based Intel Pentium 4/ Intel Celeron Processors DDR 200/266/333 DIMM x 2, Up to 2 GB Up to 24-bit Dual-channel LVDS LCD One 10/100 Base-TX Ethernet AC97 3D Surround 5.1 Channel Audio Type II CompactFlash Type III Mini PCI and PCI Slots COM x 4/ USB 2.0 x 6/ TV-out Ports
Introduction EMB-830 is the world's first Pentium 4 industrial board in embedded ATX form factor. It features a PGA478 socket that can accommodate Pentium 4 supporting FSB up to 400/533MHz. Best performance for multimedia solution AAEON's EMB-830 also supports DDR DRAM up to 2.0Gbyte, 4X AGP, and 6 channels audio output. It can provide the strong multimedia functions. Therefore EMB-830 can be broadly implemented in several markets, such as Point of sale, point of information (Kiosk), and gaming markets. Slim form factor If you are looking for a slim board for space-constrained applications, EMB-830 is the one. EMB-830 is low-profile design, meanwhile it supports 6 USB2.0, mini PCI, and PCMCIA (optional item) slots. EMB-830 promises you the greatest expansion possibilities with the most cost-effective expansion standards, PCMCIA or Mini PCI. With numerous off-the-shelf PCMCIA/Mini PCI modules, you get easy access to solutions ranging from IEEE 1394, Modem, Storage, Sound Card, SCSI card, Audio/Video capture card, Wireless LAN module, to Bluetooth module. Especially for customers whose application is various or changing, EMB-830 reserves more than enough flexibility for future expansion. More EMB-830 provides 10/100Base-T Fast Ethernet ports as standard. But for high- speed market, there is another option for you. You can choose to have one 10/100 Base-T Fast Ethernet and one Gigabit Ethernet. Talking about the display signal transmission, EMB-830 integrated dual channel LVDS interface onboard, which allows long distance display signal transmission.
Specifications System Form Factor: Embedded ATX Processor: Socket 478-based Intel Pentium 4/ Celeron processors (.13μ / .18μ ) supports up to 2.8GHz with FSB 400/533MHz System Memory: 184-pin DDR DIMM x 2, Max. 2GB (DDR 200/266/333) Chipset: Intel 845GV + ICH4 I/O Chipset: ITE IT8712 Ethernet: Intel 82562ET, 10/100Base-TX BIOS: Award 4MB FLASH BIOS Wake On LAN: Yes Watchdog Timer: Generates a time-out system reset H/W Status Monitoring: Supports power supply voltages, fan speed and temperature monitoring Expansion Interface: Mini PCI x 1, PCI x 1 Power Requirement: ATX, ATX12V Power Consumption (Typical): Pentium 4 2.0GHz, DDRII 333 512MB +5V @ 1.42A ,+3.3V@1.77A Board Size: 9.6"(L) x 9.6"(W) (243.8mm x 243.8mm) Gross Weight: 0.88 lb (0.4 kg) Operating Temperature: 32^oF ~ 140^oF (0^oC ~ 60^oC) Storage Temperature: -40^oF ~ 176^oF (-40^oC ~ 80^oC) Operating Humidity: 0% ~ 90% relative humidity, non-condensing MTBF (Hours): 90,000 I/O Storage: EIDE x 1 (UDMA 100), Type II CompactFlash? x 1, Floppy Disk Drive x 1 Serial Port: RS-232 x 3, RS-232/422/485 x 1 Parallel Port: SPP/ EPP/ ECP mode USB: USB2.0 x 6 PS/2 Port: Keyboard + Mouse x 1 Digital I/O: Supports 8-bit (Programmable) IrDA: One IrDA Tx/Rx header Audio: Mic-in, Line-in, Line-out, Speaker-out, 5.1CH Display: Supports CRT/ LCD simultaneous display Supports screen image rotation Chipset: Intel 845GV + Chrontel 7017 Memory: Shared system memory up to 64MB with DVMT Resolutions: Up to 1280x1024@32bpp colors for CRT Up to 1280x1024@24bpp colors for LCD LCD Interface: Up to 24-bit dual-channel LVDS TFT TV-out: Supports NTSC and PAL standard
Ordering Information TF-EMB-830-A20-01 Embedded ATX Board, Socket 478, 533 FSB, with LCD, LAN, 5.1 Audio, CompactFlash, 6 USB 2.0, 4 COM, ATX, Rev.A2.0 Optional Accessories 1759200153 (TF) CPU Cooler Fan + Heat Sink, Socket 478, 3P, 12V, 2U Low Profile, up to P4 2.8GHz 1759200154 (TF) CPU Cooler Fan + Heat Sink, Socket 478, 3P, 12V, 1U Low Profile, up to P4 2.2GHz TF-PER-1100-A10 - Riser Card for PCI, 3-slot, EMB-830, Rev.A1.0 TF-PER-C10L-A10 - Mini PCI 10/100 Base-TX Ethernet Module with Realtek 8100C TF-PER-C10L-A10-01 - Mini PCI Gigabit EthernetEthernet Module with Realtek 8110S TF-PER-C10L-A10-02 - Mini PCI 10/100 Base-TX Ethernet Module with Intel 82551QM TF-PER-C10L-A10-03 - Mini PCI Gigabit EthernetEthernet Module with Intel 82541GI TF-PER-C20S-A10 - Mini PCI 2-port SATA Module Rev.A1.0 TF-PER-C30F-A10 - Mini PCI 3-port IEEE 1394a Module TF-PER-V30C-A11 - Mini PCI Single Channel Capture Module with Philips SAA7135 TF-PER-C40C-A10 - Mini PCI 2-port RS-232 Module Rev. A1.0 TF-PER-C40C-A10-01 - Mini PCI 4-port RS-232 Module Rev. A1.0
